Map Colouring Strategies 06 May 2025

It has been established that no more than four colours are necessary to colour regions of a map with no adjacent regions the same colour. But hoe does one actually go about doing this?

I'm using the "map" puzzle from Simon Tatham's puzzle collection; you can play that here, though the example screenshots are from an Android implementation. Solid regions are known to be a colour; dots are added manually to indicate that this colour is possible for that region.

The most obvious approach is that if a region has three distinct neighbour colours it must take on the fourth one.

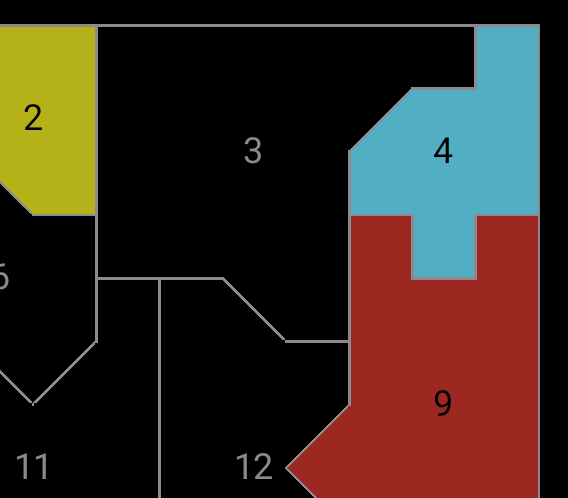

Here, since regions 2, 4 and 9 are distinct and all adjoin region 3, 3 must be in the fourth colour (green). That's enough logic for many Easy puzzles.

The doubled pair approach needs two unknown regions, touching each other and a third region, constrained to the same two colours.

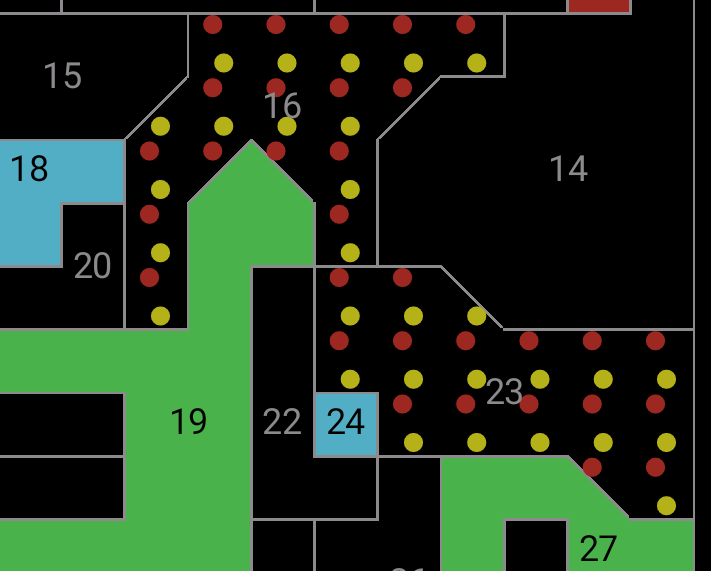

Here, 19 and 18 both touch 16, so 16 can only be red or yellow. 24 and 27 both touch 23, so it is similarly constrained. 16 and 23 touch each other, so they can't be the same colour; between the two of them there must be one red and one yellow.

Therefore region 14 can't be either red or yellow, and must be green or blue. (And if it were next to a green, it would definitely be blue.) This is generally enough logic for Normal mode.

The same principle can be extended with any even-length chain of regions:

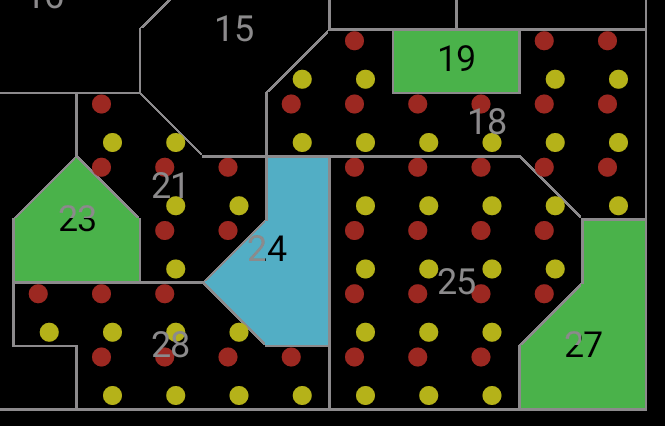

Here, 23 and 4 make 21 and 28 red/yellow; 27 and 4 make 25 red/yellow; and 4 and 19 make 18 red/yellow. So the four rejoins must either be red-yellow-red-yellow or yellow-red-yellow-red; and either way, region 15 must be blue or green.

Finally of the tricks I've found, a different sort of constraint.

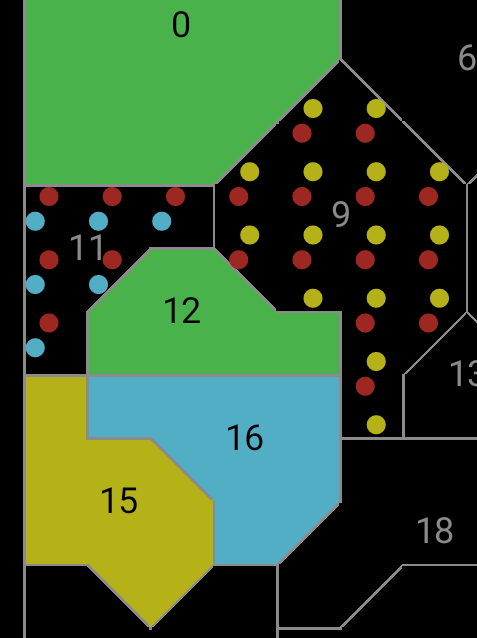

0/12 and 15 constrain 11 to be red or blue. 0/12 and 16 constrain 9 to be red or yellow.

But up to and including Hard mode, we are told that the map must be solvable by logic without trial and error. If 9 were yellow, then 11 would be entirely surrounded by green and yellow, and it could be either red or blue with no way to decide between them, which is an invalid configuration. Therefore 9 must be red, which forces 11 to be blue.

That's clearly not all the necessary logic; it's not enough to solve all Hard puzzles without occasionally guessing and backtracking. Is this something that's been written about elsewhere? Searching mostly finds proofs that four-colouring is possible, which is fair enough, but not what I'm after…
