A Large eInk Tablet 22 July 2026

I had a specific desire: an A4-page-sized way of displaying song sheets, that would work well out of doors.

The obvious answer for a big display is a tablet, but they're very expensive at that size and often poor in bright sunlight. There are eReaders which are only a bit smaller; the largest display I found is 13.3" diagonal, which is about 88% of A4 paper area, and an aspect ratio of 4:3, which is closer to the ratio of US Letter paper (1.29) than to A-series (1.41), but probably not by enough to notice.

So I bought one. Specifically a Boox Max Lumi, which was released in 2020 and has been long since replaced by newer and shinier models. Normal People care deeply about how fast one can turn pages, and annotation, and colour; only the first really has any importance to me for this. (If it turns out I really love being able to take notes and want it to work better, I'll think about buying a later device.) Apparently it can even work as a supplemental monitor, and has an HDMI socket. I'll have to try that some time.

On a technical note, it doesn't present a mass storage interface or anything else on USB, though it's running an old Android version (sometimes this is very obvious, as in the controls to toggle the wireless network and Bluetooth on and off) and is apparently susceptible to ADB. (It can be a USB host, if you have a storage device with a USB-C plug on it, which I don't though I could cobble something together with adaptors.) What they want you to do is synchronise to one of the big cloud services, or the one they run for only a small fee. Fortunately one of the options is WebDAV, for which I already have a server set up on the local network. (This is actually better than the Kobos I've had, which can't be set up without creating an account with them.)

It sits on my music stand reasonably well, though it doesn't feel terribly secure, and the display is plentifully clear even without the backlight. I have ordered a clamp (why do most clamp vendors not bother to say maximum jaw opening size?) and plan also to try a band wrapped round device and stand. None of this will help much if someone knocks the stand over, of course, but at least I can grab the stand and have a reasonable hope the thing will stay attached.

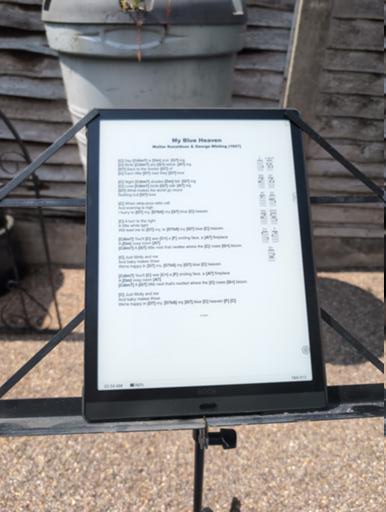

Here it is in recent bright sunlight:

(Page from Jon Hancock's Cliff Edwards Project.)

Unlike the various Kobos I've had, it clearly uses enough power at idle that by default it has not just a five minute sleep timeout but a fifteen minute power off. Nothing I play off a single sheet is likely to last fifteen minutes, but I've extended the sleep just in case.

Tags: music toys
